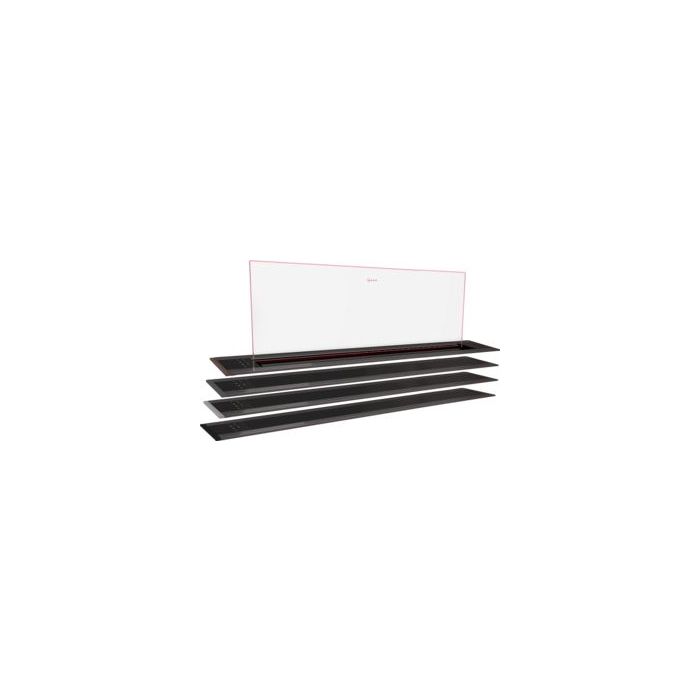

Neff I98WMM1Y7B, downdraft hood
£2,469.99
Available To Pre-Order Online
or Please contact sales on 0330 900 1966 for an available date
or Please contact sales on 0330 900 1966 for an available date
- Warranty 5 Years
- ColourBlack - Colour specific Flex Design accessories required
- Energy RatingA
- Installation TypeBuilt-In
- Width854
- Manufacturer Guarantee5 years
- EAN4242004270799
Variant
- 90 cm wide
- Installation: integrated
- Suitable for ducted extraction and recirculation

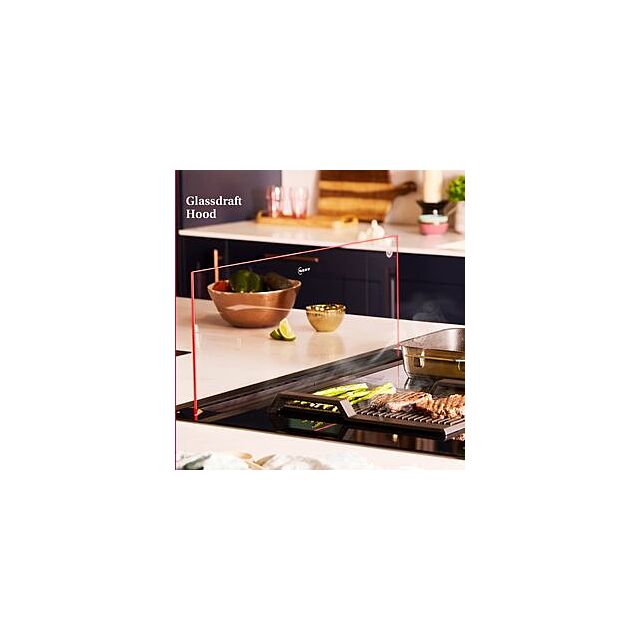

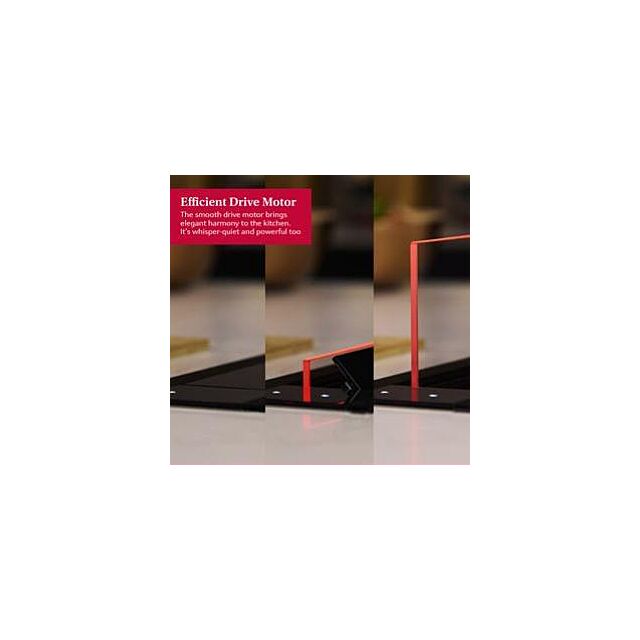

- Extendable clear glass panel with edge lighting
- edges illuminated
- Flex design: Exchangeable side trims, available in various colours and lengths (not included in the standard delivery)
- Pure surface design: suitable for seamless installation to create a unity look with the cooktop (special accessories required)
- Touch control
- The standard functions are located on the right-hand user interface
- Touch control for extractor speeds and light
- 3 power levels and 2 intensive settings
- Automatic revert setting
- Automatic intensive revert (6mins)
- Automatic after running (Automatic after running (10 minutes))

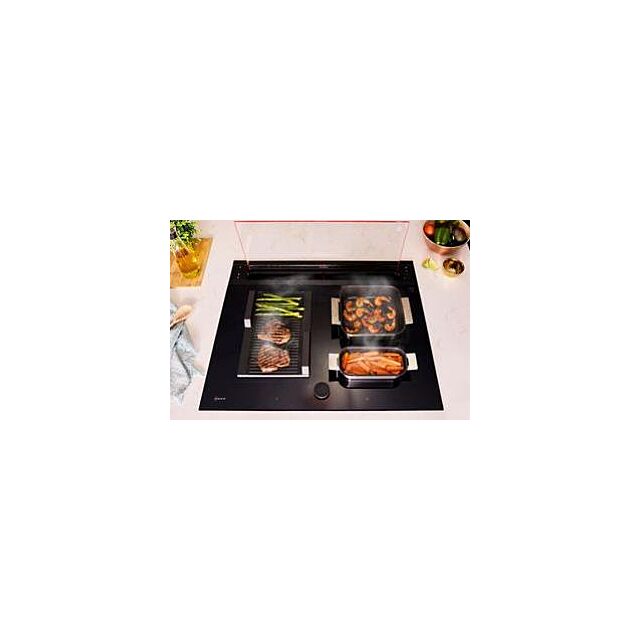

- climateControl Sensor
- Hob-Hood control (with Wi-Fi enabled hob)
- Fully automatic hood

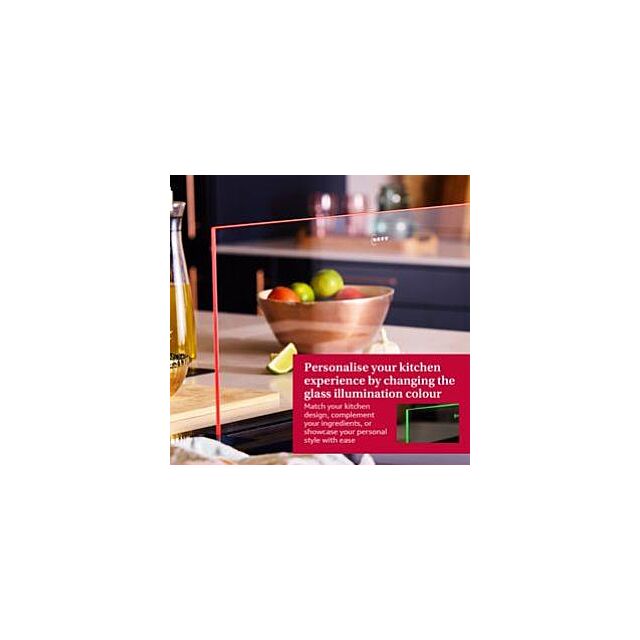

- Additional functions: Ambient light RGB

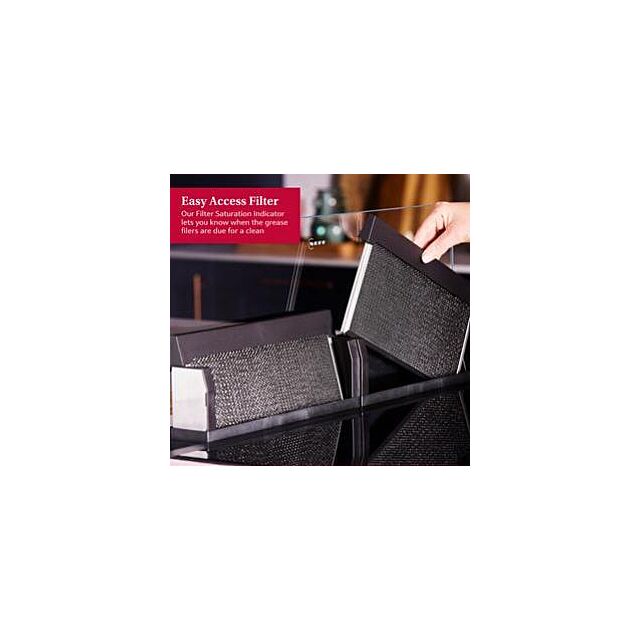

- 2 metal grease filter cassettes
- Saturation indicator for metal and charcoal filter
- The filter service button automatically lifts filters into service position for easy removal
- The glass panel can be easily removed and cleaned
- Remote Monitoring and Control for connected home appliances and operation via smartphone or tablet (only in countries where Home Connect service is available)
- The Home Connect functionality can be extended by integrating numerous applications from external cooperation partners (partnerships)
- Voice Control enabled via popular voice assistants (only in countries where this service is available)
- Interval function: available via Home Connect
- Silence function: available via Home Connect
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use 519m³/h
- Intensive 833 m³/h
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use: 62dB(A) re 1 pW
- Intensive: 71 dB(A) re 1 pW
- With the Clean Air Plus recirculation kit (available as optional accessory) your appliances reaches:
- Extraction rate in recirculation mode:
- Max. normal use: 456m³/h
- Intensive: 596m³/h
- Noise level in recirculation mode:
- Max. normal use: 66dB(A) re 1 pW
- Intensive: 71 dB(A) re 1 pW
- Efficient BLDC technology
- Suitable for installation in an island or Semi-island kitchen solution
- Suitable for installation into 90 cm cabinet
- Not suitable for combination with gas hobs
- Please reference the built-in dimensions provided in the installation drawings
- For recirculated extraction Clean Air Plus recirculation kit (accessory) needed
- For remote motor installation, special accessory kit (Z92WWM11) is needed
- Built-in dimensions (HxWxD): 703 x 854 x 123 mm
- Dimensions (HxWxD): 709 x 918 x 140 mm
- Extension height 250 mm
- Extractor hose 150 mm
- Electrical cable length 1.3 m

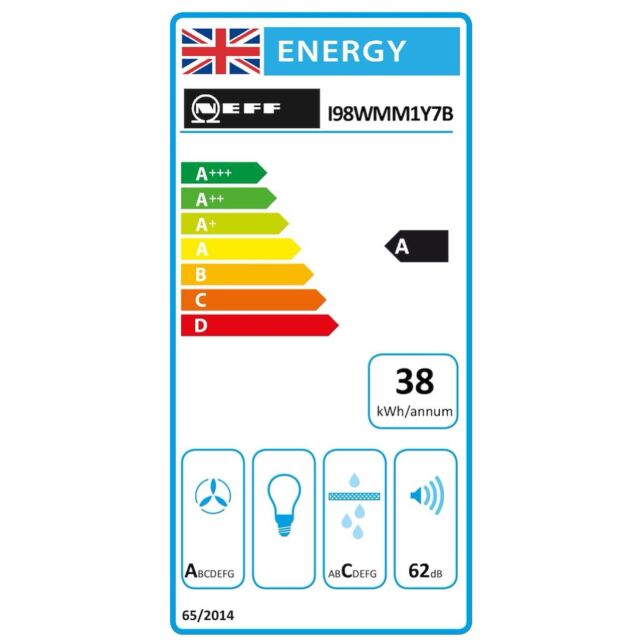

- Energy Efficiency Class: A (at a range of energy efficiency classes from A+++ to D)
- Average Energy Consumption: 37.8 kWh/year*
- Blower Efficiency Class: A*
- Lighting Efficiency Class: -*
- Grease Filtering Efficiency Class: C*
- Power rating: 300 W
| Manufacturer | Neff |
|---|---|
| GTIN | 4242004270799 |
| Colour | Black - Colour specific Flex Design accessories required |
| Model Number | I98WMM1Y7B |
| Type of Control / Appliances | Electronic |
| Type of Control Settings | Touch control;Via app |
| Construction Type | Built-In |
| BSH 5 Year Warranty | Neff |
| Appliance Current (A) | 10 |
| Appliance Voltage (V) | 220-240 |
| Appliance Frequency (Hz) | 50-60 |
| Plug Type | GB plug |
| Cord Length | 130 |
| Grease Filter Type | Kassette |
| Min Niche Width | 854 |
| Energy Rating | A |
| Niche Depth | 123 |
| Noise Level | 62 |
| Warranty Duration | 5 |
| Boost Position Air Extraction | 833 |
| Max Output Air Extraction | 519 |
| Noise Level Boost Position | 71 |
| Sound Power Boost | 71 |
| Sound Power Min Speed | 41 |
| Sound Power Max Speed | 62 |
| Air Flow Boost | 833 |
| Min Air Flow | 229 |
| Max Air Flow | 519 |
| Grease Filtering Efficiency Class | C |
| Grease Filtering Efficiency | 82.8 |
| Max Output Recirculating Air | 456 |
| Boost Position Output Recirculating | 596 |
| Grease Filter Material | Washable stainless steel |
| Number of Motors | 1 |
| Diameter of Air Outlet | 150 |
| Lighting Efficiency Class | - |
| Motor Location | Integrated motor in hood body |
| Fluid Dynamic Efficiency | 30.0 |
| Operating Mode | Convertible |
| Typology | Downdraft |
| Fluid Dynamic Efficiency Class | A |
| Installation Type | Built-In |
| Width | 854 |
