Benefits
Features
  • Electronic controls via Soft touch control
  • 3 speeds plus intensive
  • 2 x 1,5W LED
  • Efficient BLDC technology
  • Automatic intensive revert (6mins)
  • Automatic after running (Automatic after running (10 minutes))
  • 2 metal grease filter cassettes
Design
  • 60 cm wide
  • Silver metallic grey
  • Handle strip specification: stainless steel with logo
  • Filter cover stainless steel, perforated and dishwasher safe
Performance
  • Suitable for ducted extraction and recirculation
  • For recirculated extraction recirculating kit (accessory) needed
  • Energy Efficiency Class: A (at a range of energy efficiency classes from A+++ to D)
  • Extraction rate according to EN 61591 ø 15 cm:
  • max. Normal use 268m³/h
  • Intensive 400 m³/h
  • Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 62 dB(A) re 1 pW
  • Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
  • Max. normal use: 62dB(A) re 1 pW
  • Intensive: 69 dB(A) re 1 pW
  • Colour Temperature: 3500 K
  • Light Intensity: 294 lux
  • Power rating: 74 W
  • Average Energy Consumption: 21 kWh/year*
  • Blower Efficiency Class: B*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: C*
Planning and installation information
  • Installation: Cupboard 60 cm
  • Dimensions (HxWxD): 203 x 598 x 290 mm
  • Built-in dimensions (HxWxD): 162 x 526 x 290 mm
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
  • Electrical cable length 1.75 m
More Information
Manufacturer Neff
Type of Control / Appliances Electronic
Type of Control Settings Button
Construction Type Built-In
GTIN 4242004250807
Colour Stainless Steel
Model Number D46ED22N1B
Appliance Current (A) 10
Appliance Voltage (V) 220-240
Appliance Frequency (Hz) 50; 60
Approval Certificates CE, E17D UKCA marking, VDE
Plug Type GB plug
Cord Length 175
Grease Filter Type Kassette
Min Niche Width 526
Energy Rating A
Niche Depth 290
Noise Level 62
Warranty Duration 2
Number of Lights 2
Type of Light LED
Boost Position Air Extraction 400
Max Output Air Extraction 268
Noise Level Boost Position 69
Sound Power Boost 69
Sound Power Min Speed 49
Sound Power Max Speed 62
Air Flow Boost 400
Min Air Flow 161
Max Air Flow 268
Grease Filtering Efficiency Class C
Grease Filtering Efficiency 79.6
Max Output Recirculating Air 263
Boost Position Output Recirculating 353
Grease Filter Material Washable aluminium
Number of Motors 1
Lighting Efficiency Class A
Lighting Efficiency 71.7
Motor Location Integrated motor in hood body
Fluid Dynamic Efficiency 24.6
Operating Mode Convertible
Typology Pull-out
Fluid Dynamic Efficiency Class B
Installation Type Built-In
Width 526

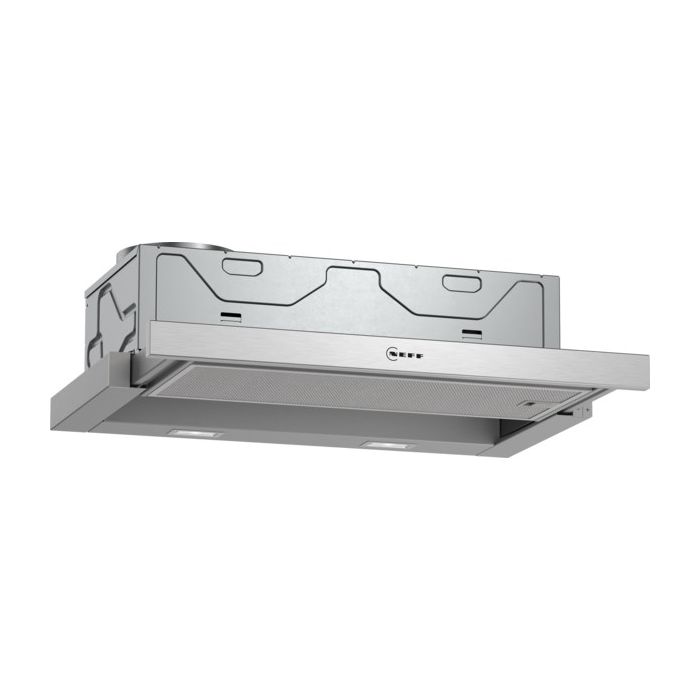

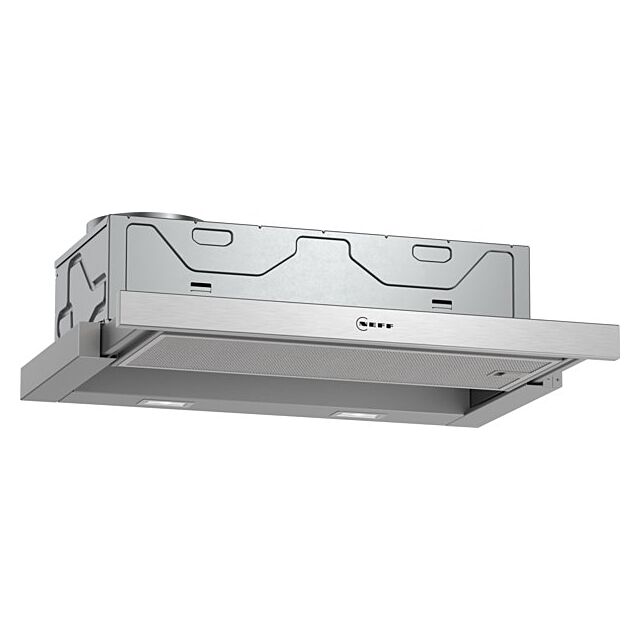

Neff D46ED22N1B, Telescopic cooker hood
