Flexibility of cooking zones
- 60 cm: space for 4 pots or pans.
- Cooking zone front left: 145 mm, 1.4 KW
- Cooking zone rear left: 180 mm, 1.8 KW (max. power 3.1 KW)
- Cooking zone rear right: 145 mm , 1.4 KW
- Cooking zone front right: 180 mm, 1.8 KW
- TouchSelect Basic: control the power with imprinted +/- touch buttons.
- Variable 9-stage power settings for each zone: precisely adapt the heat with 9 power levels.
- PowerBoost function in the front left zone
- : boil water faster thanks to 50% more energy than at the highest standard level.
- QuickStart function: when switching on, the hob automatically selects the cooking zone with cookware (when placed on a zone whilst the hob is off).
- Quick Stop: quickly switch off a cooking zone with one longer touch.
- Frameless design
- Control panel lock: prevent unintended activation of the hob.
- Main on/off switch: switch off all cooking zones at the touch of a button.
- Automatic safety shut off: for safety reasons, heating stops after a preset time if not used.

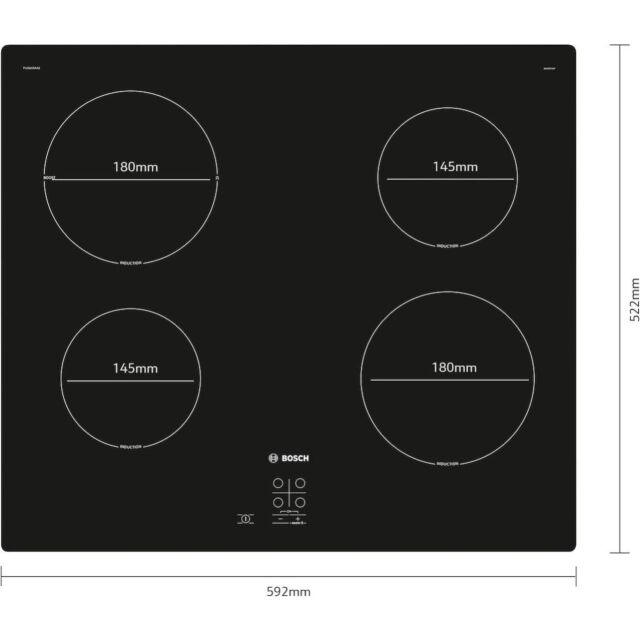

- Dimensions of the product (HxWxD mm): 51 x 592 x 522
- Required niche size for installation (HxWxD mm) : 51 x 560 x (490 - 500)
- Min. worktop thickness: 16 mm
- Connected load: 3.7 KW
- Power cord 1.1 m UK 3 pin plug: plug and play, no electrician required for installation.
- This hob is equipped with a UK 3 pin plug for an easy plug & play installation. The plug limits the maximum power output to 3.7 KW. For higher power output, please select a hob without plug and ensure installation is carried out by a qualified electrician.
| Manufacturer | Bosch |
|---|---|
| Type of Control / Appliances | Electronic |
| Type of Control Settings | touch control |
| Construction Type | Built-In |
| GTIN | 4242005285419 |
| Colour | Black glass |
| Model Number | PUG61RAA5B |
| Appliance Voltage (V) | 220-240 |
| Appliance Frequency (Hz) | 50; 60 |
| Approval Certificates | AENOR, CE |
| Plug Type | GB plug |
| Cord Length | 110 |
| Main On / Off Switch | Yes |
| Number of Induction Plates | 4 |
| Residual Heat Indicator Type | Separate |
| Type of Lid | Without |
| Safety Features | Child-proof lock;Inactivity time shut off;Pan/pot recognition shut off |
| Type of Regulation | Stepless energy regulated |
| Type of Frame | Frameless |
| Min Niche Width | 560 |
| Min Niche Height | 490 |
| Energy Input | Electric |
| Niche Depth | 51 |
| Cooker / Oven Control Panel Location | Front |
| Warranty Duration | 2 |
| Cooker / Oven Time Options | No delay options |
| Installation Type | Built-In |
| Width | 560 |
| Height | 500 |
| Number Of Cooking Zones | 4 |
