Benefits
Key performance features:
  • Energy Efficiency Class: A (at a range of energy efficiency classes from A+++ to D)
  • Extraction rate according to EN 61591 ø 15 cm:
  • max. Normal use 410m³/h
  • Intensive 644 m³/h
  • Noise max. Normal Level: Noise, max. speed in normal us: 62 dB dB*
Features

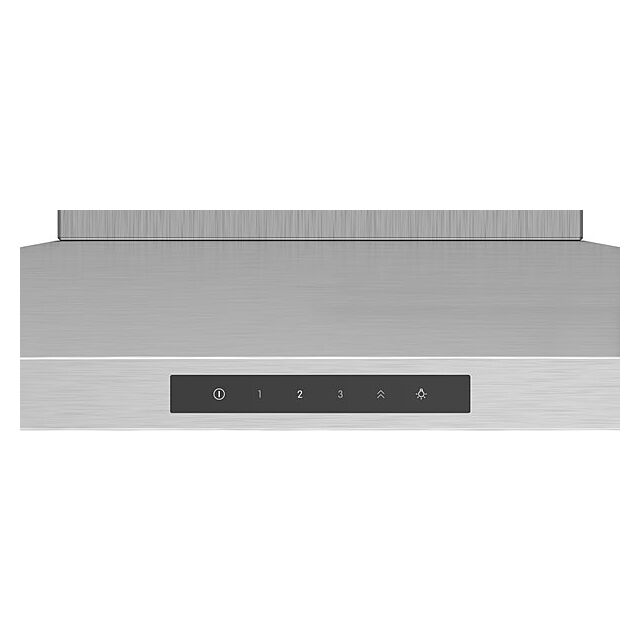

  • TouchControl with Electronic display
  • Electronic display
  • 3 power levels & intensive setting
  • 2 x 1.5W LED light
  • Colour Temperature: 3500 K
  • Automatic intensive revert (6mins)

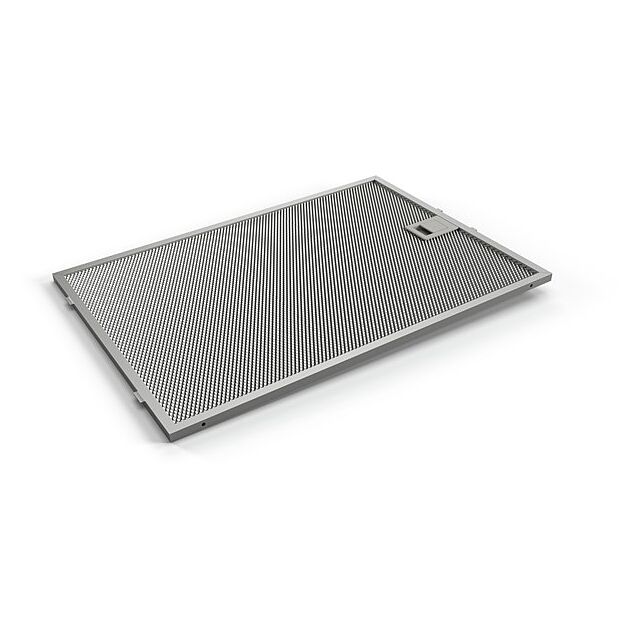

  • 2 removable metal grease filter cassettes
  • Installation: wall
Design
  • Chimney extractor hood
  • TouchControl
  • Electronic control
Performance/technical information
  • Suitable for ducted or recirculating operation
  • For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
  • Max. extraction rate: 644 m3/h
  • Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
  • Max. normal use: 62dB(A) re 1 pW
  • Intensive: 70 dB(A) re 1 pW
  • Power rating: 220 W
  • Light Intensity: 242 lux
  • Electrical cable length 1.3 m
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
  • Dimensions exhaust air (HxWxD): 676-1006 x 600 x 500 mm
  • Dimensions recirculating (HxWxD): 676-1116 x 600 x 500 mm
  • Dimensions recirculating with CleanAir module (HxWxD):
  • 744 x 600 x 500mm - mounting with outer chimney
  • 874-1204 x 600 x 500 mm - mounting with telescopic chimney

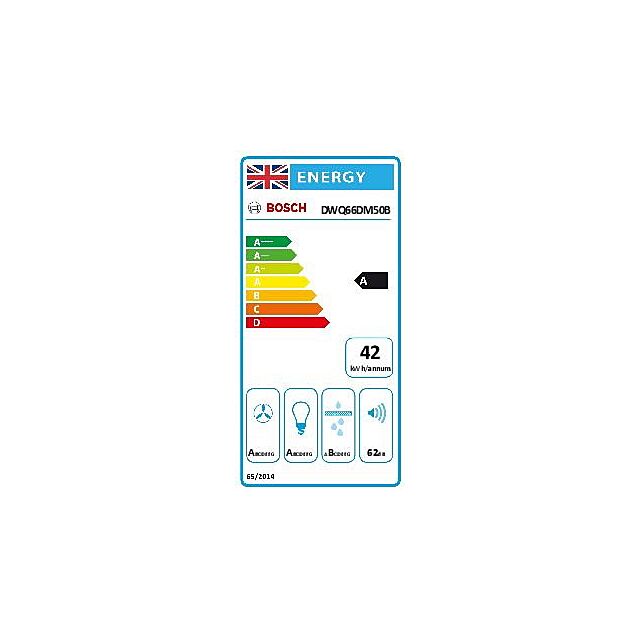

  • Blower Efficiency Class: A*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: B*
  • Average Energy Consumption: 41.7 kWh/year*
Optional accessories
  • Recirculating kit DHZ1225
More Information
Manufacturer Bosch
Type of Control / Appliances Electronic
Type of Control Settings touch control
Construction Type Built-In
GTIN 4242005051212
Colour Brushed steel
Model Number DWQ66DM50B
Appliance Current (A) 10
Appliance Voltage (V) 220-240
Appliance Frequency (Hz) 50; 60
Approval Certificates CE, E17D UKCA marking, VDE
Plug Type GB plug
Cord Length 130
Grease Filter Type Kassette
Energy Rating A
Noise Level 62
Warranty Duration 2
Number of Lights 2
Type of Light LED
Boost Position Air Extraction 644
Max Output Air Extraction 411
Noise Level Boost Position 70
Sound Power Boost 70
Sound Power Min Speed 50
Sound Power Max Speed 62
Air Flow Boost 645
Min Air Flow 259
Max Air Flow 411
Grease Filtering Efficiency Class B
Grease Filtering Efficiency 87.0
Max Output Recirculating Air 337
Boost Position Output Recirculating 441
Grease Filter Material Washable aluminium
Number of Motors 1
Height without Chimney 94
Lighting Efficiency Class A
Lighting Efficiency 69.1
Chimney Colour Stainless Steel
Motor Location Integrated motor in hood chimney
Fluid Dynamic Efficiency 30.6
Operating Mode Convertible
Typology Wall-mounted
Fluid Dynamic Efficiency Class A
Chimney Material Stainless steel
Installation Type Built-In

Bosch DWQ66DM50B, Wall-mounted cooker hood
