Benefits
  • DWB66BC60B
Design
  • Chimney extractor hood
  • Box design
  • 60 cm wide
  • Installation: wall
  • Black
  • Suitable for ducted or recirculating operation
  • For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
  • Dimensions exhaust air (HxWxD): 635-965 x 600 x 500 mm
  • Dimensions recirculating (HxWxD): 635-1075 x 600 x 500 mm
Performance/technical information

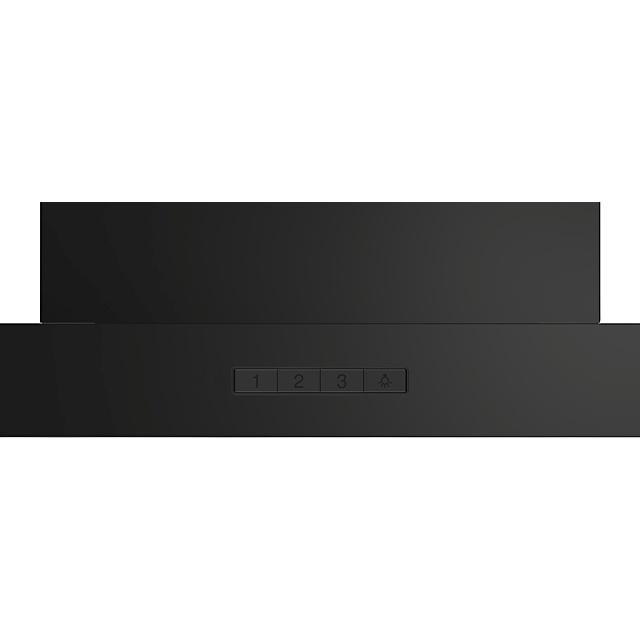

  • 3 power levels via Push button control
  • Maximum extraction rate exhaust air 621 m³/h according to EN 61591
  • Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 69 dB(A) re 1 pW
  • With the Clean Air Plus recirculation kit (available as optional accessory) your appliances reaches:
  • Extraction rate in recirculation mode:
  • Max. normal use: 422m³/h
  • Noise level in recirculation mode:
  • Max. normal use: 74 dB(A) re 1 pW
  • Blower Efficiency Class: A*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: B*

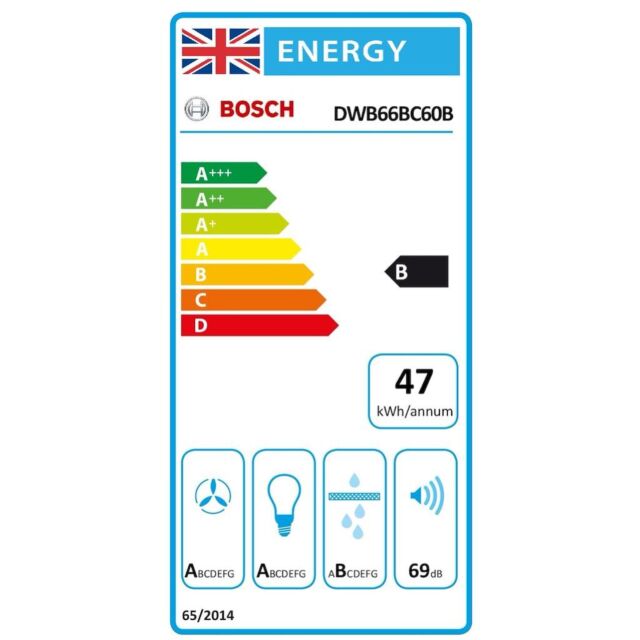

Energy efficiency class
  • Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
  • Average Energy Consumption: 46.5 kWh/year*
Technical Information
  • Electrical cable length 1.3 m
  • 2 x 1.5W LED light
  • Colour Temperature: 3500 K
  • Power rating: 220 W
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
Special features
  • Twin channel high performance fan motor

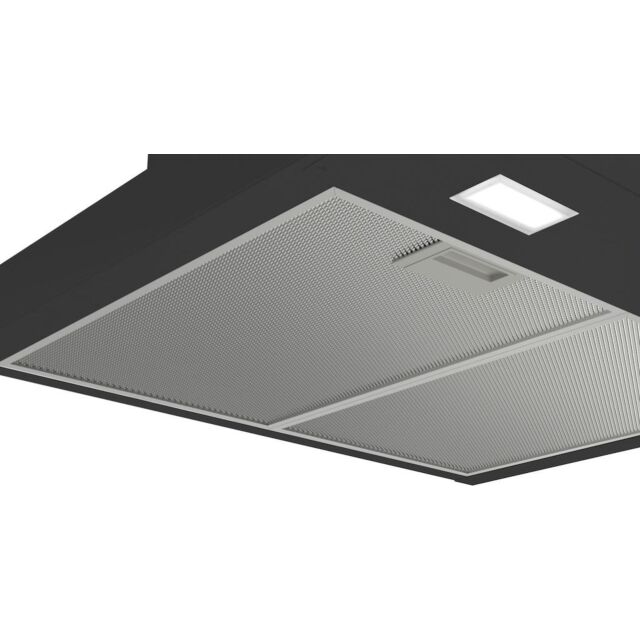

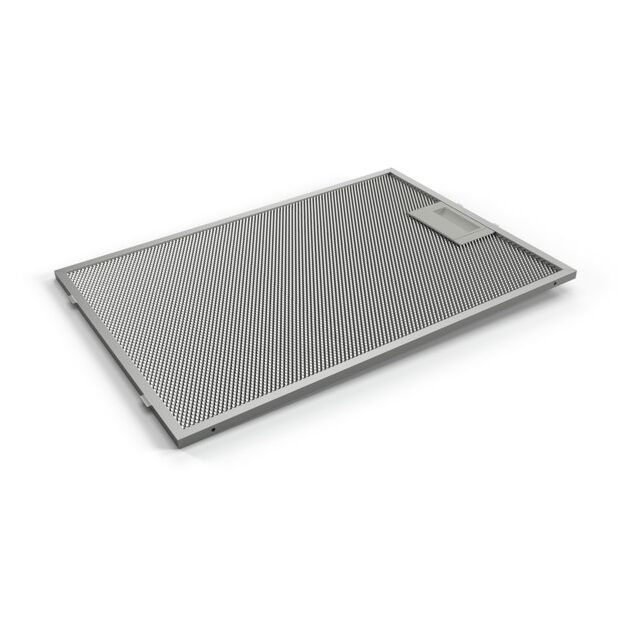

  • 2 removable metal grease filter cassettes
More Information
Manufacturer Bosch
Type of Control / Appliances Mechanical
Type of Control Settings Button
Construction Type Built-In
GTIN 4242005451135
Colour Black
Model Number DWB66BC60B
Appliance Current (A) 10
Appliance Voltage (V) 220-240
Appliance Frequency (Hz) 50; 60
Plug Type GB plug
Cord Length 130
Grease Filter Type Kassette
Energy Rating B
Noise Level 69
Warranty Duration 2
Number of Lights 2
Type of Light LED
Max Output Air Extraction 621
Sound Power Min Speed 48
Sound Power Max Speed 69
Min Air Flow 242
Max Air Flow 621
Grease Filtering Efficiency Class B
Grease Filtering Efficiency 88.6
Max Output Recirculating Air 422
Grease Filter Material Washable aluminium
No Return Air Flow Flap Yes
Number of Motors 1
Lighting Efficiency Class A
Lighting Efficiency 35.4
Chimney Colour Black
Motor Location Integrated motor in hood chimney
Fluid Dynamic Efficiency 28.8
Operating Mode Convertible
Typology Wall-mounted
Fluid Dynamic Efficiency Class A
Chimney Material Black
Installation Type Built-In

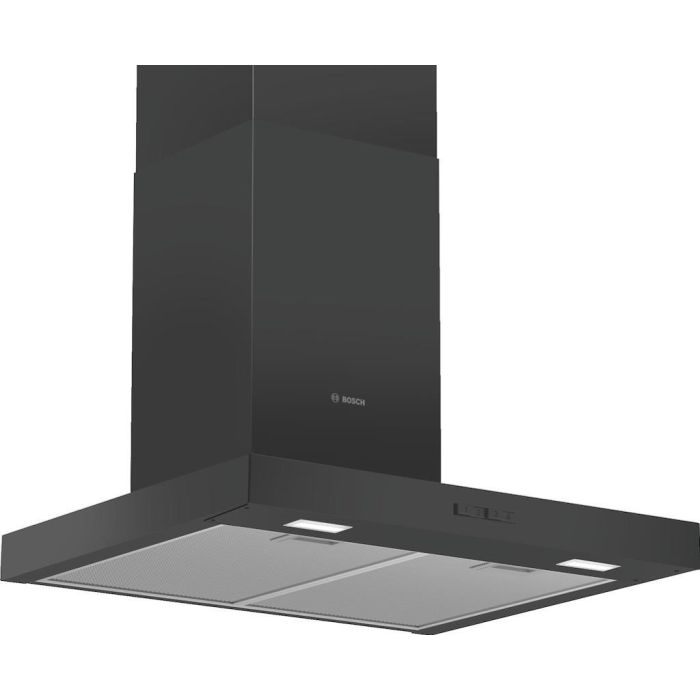

Bosch DWB66BC60B, Wall-mounted cooker hood
