Key performance features:
  • Energy Efficiency Class: D (at a range of energy efficiency classes from A+++ to D)
  • Maximum extraction 350 m3/h
  • Noise max. Normal Level: Noise, max. speed in normal us: 72 dB dB*
Features

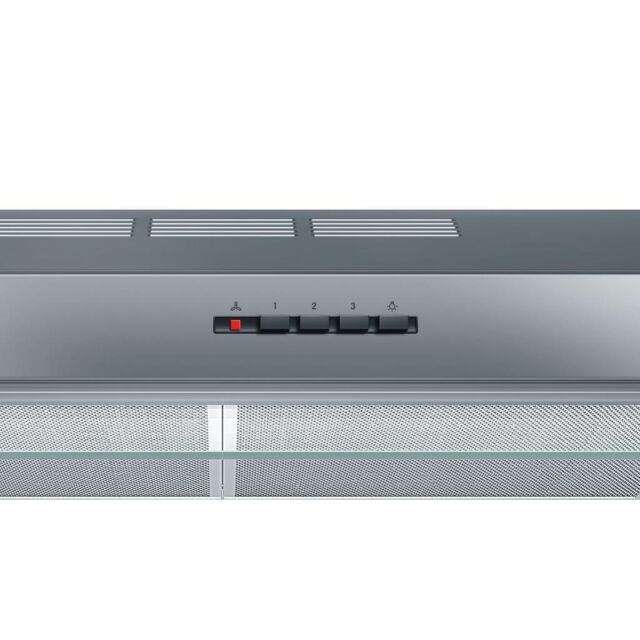

  • Push button control for extractor speeds and light
  • 3 power levels
  • 2 x 4W LED light
  • Colour Temperature: 3000 K

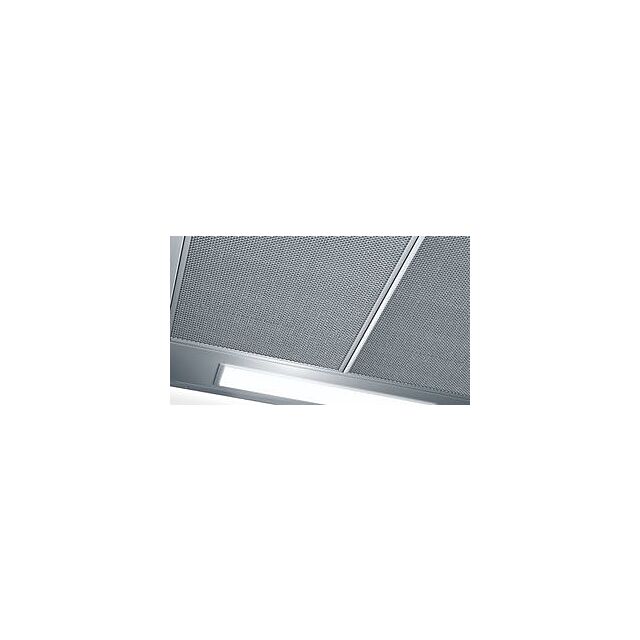

  • 2 removable metal grease filter cassettes
Design
  • Built under conventional hood
  • Installation: Wall or under hang-up cupboard
  • Adjustable glass visor
  • Push button control
  • Mechanical
Performance/technical information
  • Suitable for ducted or recirculating operation
  • For recirculated extraction charcoal filter (accessory) needed
  • Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 72 dB (A) re 1pW
  • Power rating: 146 W
  • Light Intensity: 45 lux
  • Electrical cable length 1.45 m
  • Blower Efficiency Class: E*
  • Lighting Efficiency Class: E*
  • Grease Filtering Efficiency Class: C*
  • Average Energy Consumption: 93.3 kWh/year*
  • Diameter pipe Ø 120 mm (Ø 100 mm enclosed)
  • Dimensions exhaust air (HxWxD): 150-150 x 600 x 482 mm
  • Dimensions recirculating (HxWxD): 150-150 x 600 x 482 mm
Optional accessories
  • Recirculating kit DHZ2701
More Information
Manufacturer Bosch
Type of Control / Appliances Mechanical
Type of Control Settings Button
Construction Type Built-In
GTIN 4242002968513
Colour Brushed steel
Model Number DUL63CC50B
Appliance Voltage (V) 220-240
Appliance Frequency (Hz) 50
Approval Certificates CE
Plug Type GB plug
Cord Length 145
Grease Filter Type Kassette
Energy Rating D
Noise Level 72
Warranty Duration 2
Number of Lights 2
Max Output Air Extraction 350
Sound Power Min Speed 56
Sound Power Max Speed 72
Air Flow Boost 0.0
Min Air Flow 175
Max Air Flow 350
Grease Filtering Efficiency Class C
Grease Filtering Efficiency 75.1
Max Output Recirculating Air 110
Grease Filter Material Washable aluminium
No Return Air Flow Flap Yes
Number of Motors 1
Lighting Efficiency Class E
Lighting Efficiency 11.0
Motor Location Integrated motor in hood body
Fluid Dynamic Efficiency 8.7
Operating Mode Convertible
Typology Built-in/Built-under
Fluid Dynamic Efficiency Class E
Installation Type Built-In

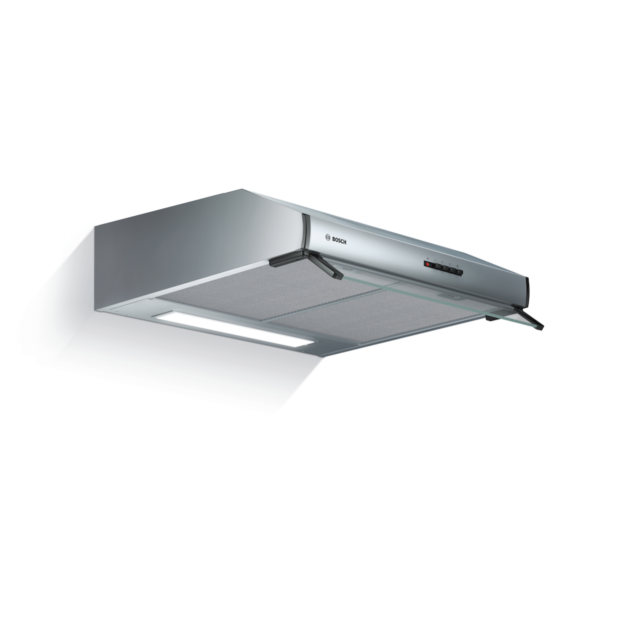

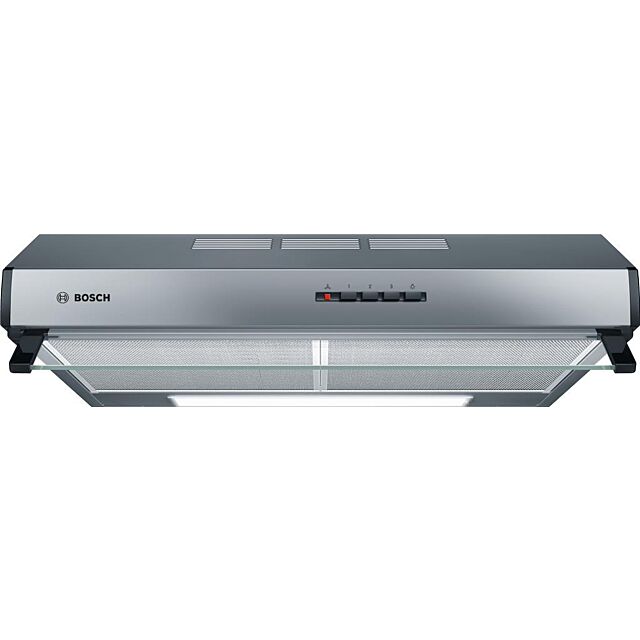

Bosch DUL63CC50B, Built-under cooker hood
