Bosch DLN77AC60B, Canopy cooker hood

£589.99
Available To Pre-Order Online
or Please contact sales on 0330 900 1966 for an available date
Monthly insurance available

Add appliance cover for£4.99 per month Cancel anytime

FIRST MONTH FREE

BENEFITS INCLUDE:

  • Appliance Service
  • No delay fix or replace promise
  • Parts & labour costs included
  • Out of pocket expenses such as time off work
  • and much more…

Some free of charge benefits are provided to you automatically when you purchase Protect & Care. For full details of Protect & Care, what’s included, excluded, how to claim, refunds, complaints process and how to opt out of the free benefits please read the Terms and Conditions.

View Terms and Conditions
Add Monthly Insurance
Remove protection

Add appliance cover for£4.99 per month Cancel anytime

FIRST MONTH FREE

Receive the following benefits if your appliance fails during your appliance manufacturers warranty.

  • Appliance not fixed within 14 days? We’ll replace it.
  • Appliance failed more than 3 times? We’ll replace it.
  • And, covered for up to £125 for…
    • Time taken off work.
    • Failures caused by incorrect installation.
    • Failures caused lack of maintenance.
    • Failures caused rust or water damage.
    • Replacement of cosmetic parts if refused by the manufacturer.
    • Damaged clothing or lost food.
    • Meal costs while your appliance is faulty.
    • Other expense such as laundrette costs.

After your appliance manufacturers warranty expires, you will benefit from,

  • Repairs if your appliance fails.
  • Parts & labour costs included.
  • A replacement appliance if we cannot repair yours.
  • A free appliance service for laundry, refrigeration or cooking appliances.
  • Up to £250 reinstallation costs if we replace your appliance.
  • And, if we can't repair your appliance within 3 working days you are covered for up to £125 for…
    • Lost wages due to time taken of work.
    • Damaged clothing or lost food.
    • Meal costs while your appliance is faulty.
    • Other expenses such as laundrette costs.
    • The cost of replacement cosmetic parts.

Some free of charge benefits are provided to you automatically when you purchase Protect & Care. For full details of Protect & Care, what’s included, excluded, how to claim, refunds, complaints process and how to opt out of the free benefits please read the Terms and Conditions.

Add to Wish List Add to Compare
  • Warranty 2 Years
  • ColourBlack
  • BSH 5 Year WarrantyNo
  • Energy RatingB
  • Installation TypeBuilt-In
  • Width676
  • Air Flow Boost730.0
  • Appliance Current (A)3
  • Appliance Frequency (Hz)60; 50
  • Appliance Voltage (V)220-240
  • Boost Position Air Extraction730
  • Boost Position Output Recirculating705
  • Construction TypeBuilt-In
  • Cord Length150
  • Fluid Dynamic Efficiency29.3
  • Fluid Dynamic Efficiency ClassA
  • Grease Filter MaterialWashable aluminium
  • Grease Filtering Efficiency65.1
  • Grease Filtering Efficiency ClassD
  • Lighting Efficiency182.0
  • Lighting Efficiency ClassA
  • Max Air Flow595
  • Max Output Air Extraction595
  • Max Output Recirculating Air580
  • Min Air Flow270.0
  • Min Niche Width676
  • Motor LocationIntegrated motor in hood body
  • Niche Depth264
  • No Return Air Flow FlapYes
  • Noise Level63
  • Noise Level Boost Position68
  • Number of Lights2
  • Number of Motors1
  • Operating ModeConvertible
  • Plug TypeGB plug
  • Sound Power Max Speed63
  • Sound Power Min Speed45
  • Type of Control / AppliancesElectronic
  • Type of Control SettingsButton
  • Type of LightLED
  • TypologyBuilt-in/Built-under
  • Warranty Duration2
  • Manufacturer Guarantee2 years
  • EAN4242005475643
b rating
main product photo
Benefits
Design:
  • Canopy hood
  • Installation: Cabinet
  • Flush-fitted installation for a seamless integration in wall cupboards.
  • Suitable for ducted or recirculating operation
  • For recirculated extraction various recirculation kits are available as optional accessories.
Core Features:
  • 2 x 1W LED
  • Colour Temperature: 4000 K
  • Light Intensity: 400 lux
  • Capacitor motor

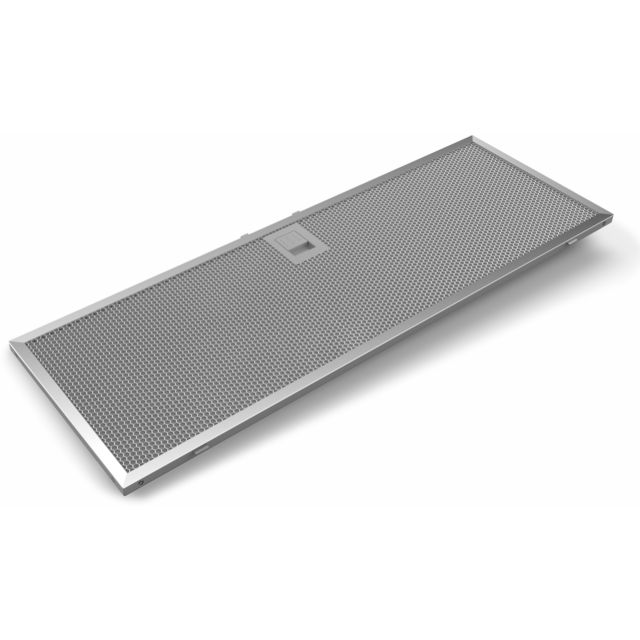

  • 2 metal grease filter(s).
Comfort Features:

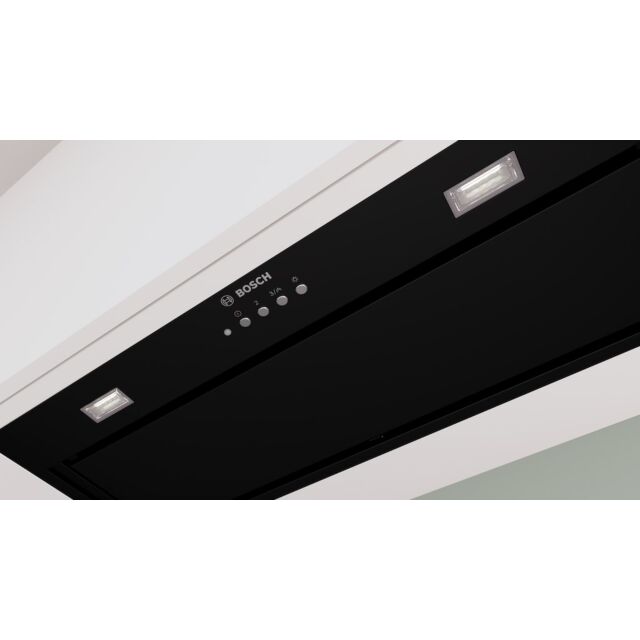

  • Soft touch button control with Electronic display
  • 3 power levels & intensive setting
  • Automatic reset from intensive to normal setting after 6 min
Cleaning Comfort:
  • Removable metal grease filters dishwasher-safe
  • Easy to clean smooth surfaces and materials.
Performance Exhaust:
  • According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in exhaust mode: Speed 1: extraction rate 270 m3/h; noise level 45 dB (A) re1pW Speed 2: extraction rate 400 m3/h; noise level 53 dB (A) re1pW Speed 3: extraction rate 595 m3/h; noise level 63 dB (A) re1pW Intensive 1: extraction rate 730 m3/h; noise level 68 dB (A) re1pW
  • Energy Efficiency Class: A (at a range of energy efficiency classes from A+++ to D)
  • Average Energy Consumption: 55.5 kWh/year*
  • Blower Efficiency Class: A*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: D*
Performance Recirculation:
  • According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in  recirculation mode with standard recirculation kit (available as optional accessory): Speed 1: extraction rate 250 m3/h; noise level 65 dB (A) re1pW Speed 2: extraction rate 350 m3/h; noise level 71 dB (A) re1pW) Speed 3: extraction rate 400 m3/h ; noise level 74 dB (A) re1pW) Intensive Speed 1: extraction rate430 m3/h; noise level 75 dB (A) re1pW)
  • According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in recirculation mode with Clean Air plus recirculation kit, for chimless installation (available as optional accessory): Speed 1: extraction rate 260 m3/h ; noise level 53 dB (A) re1pW Speed 2: extraction rate 385 m3/h ; noise level 71 dB (A) re1pW) Speed 3: extraction rate 580 m3/h ; noise level 70 dB A) re1pW) Intensive Speed 1: extraction rate 705 m3/h ; noise level 73 dB (A) re1pW)
Technical Information and Sustainability:
  • Consumption data:
  • Power rating: 252 W
  • Voltage: Nominal voltage: 220 - 240 V
  • Sustainability:
  • Environmentally friendly packaging
  • Available odour filter as regenerative Long Life filter with 10 years lifetime
Planning and Installation Information:
  • Dimensions (HxWxD): 345 x 700 x 282 mm
  • Dimensions recirculating (HxWxD): 345-345 x 700 x 282 mm
  • Built-in dimensions (HxWxD): 345 x 676 x 264 mm
  • Please reference the built-in dimensions provided in the installation drawings
  • Electrical cable length 1.5 m
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
  • Back-pressure flap: Yes
More Information
Manufacturer Bosch
GTIN 4242005475643
Colour Black
Model Number DLN77AC60B
Type of Control / Appliances Electronic
Type of Control Settings Button
Construction Type Built-In
BSH 5 Year Warranty No
Appliance Current (A) 3
Appliance Voltage (V) 220-240
Appliance Frequency (Hz) 60; 50
Plug Type GB plug
Cord Length 150
Min Niche Width 676
Energy Rating B
Niche Depth 264
Noise Level 63
Warranty Duration 2
Number of Lights 2
Type of Light LED
Boost Position Air Extraction 730
Max Output Air Extraction 595
Noise Level Boost Position 68
Sound Power Min Speed 45
Sound Power Max Speed 63
Air Flow Boost 730.0
Min Air Flow 270.0
Max Air Flow 595
Grease Filtering Efficiency Class D
Grease Filtering Efficiency 65.1
Max Output Recirculating Air 580
Boost Position Output Recirculating 705
Grease Filter Material Washable aluminium
No Return Air Flow Flap Yes
Number of Motors 1
Lighting Efficiency Class A
Lighting Efficiency 182.0
Motor Location Integrated motor in hood body
Fluid Dynamic Efficiency 29.3
Operating Mode Convertible
Typology Built-in/Built-under
Fluid Dynamic Efficiency Class A
Installation Type Built-In
Width 676
