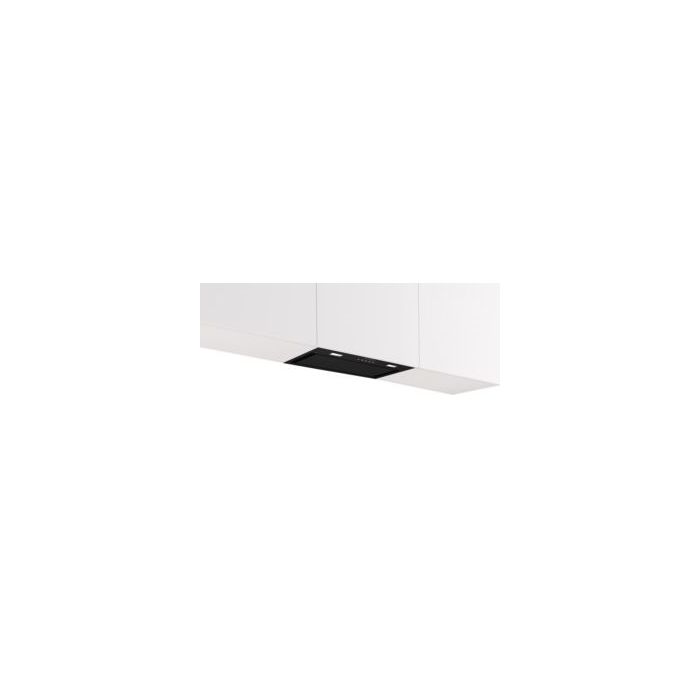

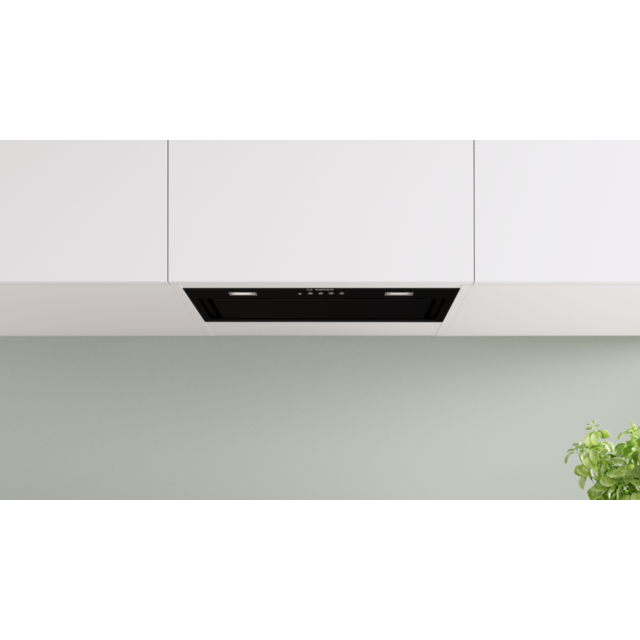

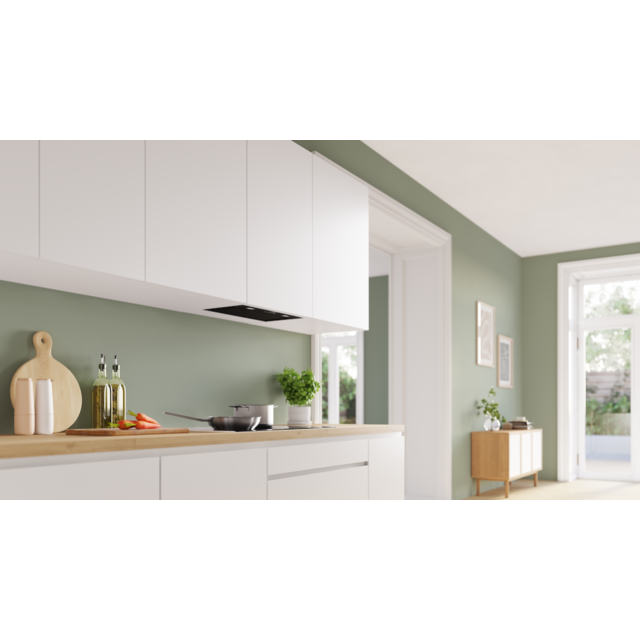

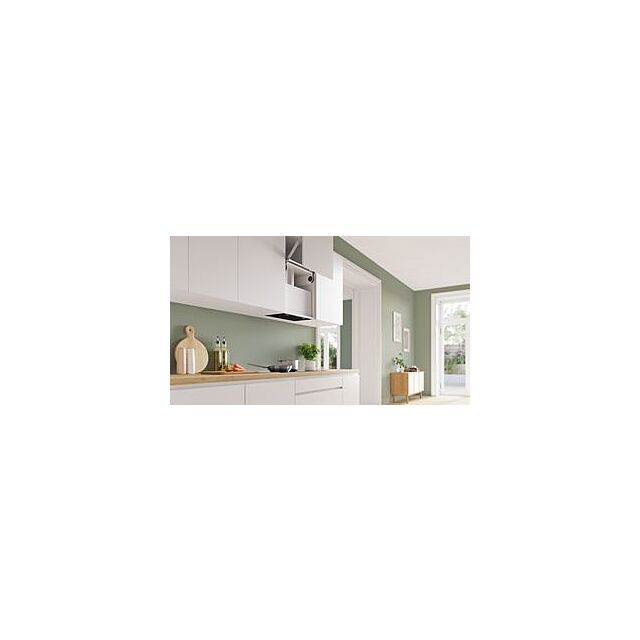

Bosch DLN56AC60B, Canopy cooker hood

£519.99
Available from 1st May 2026
Delivery date

Available for Delivery
Item Subtotal
Delivery date
Check delivery services and prices available in your area
Some of the selected options may have changed your availability, click here to refresh

Add appliance cover for£0.00 per month Cancel anytime

FIRST MONTH FREE

Receive the following benefits if your appliance fails during your appliance manufacturers warranty.

  • Appliance not fixed within 14 days? We’ll replace it.
  • Appliance failed more than 3 times? We’ll replace it.
  • And, covered for up to £125 for…
    • Time taken off work.
    • Failures caused by incorrect installation.
    • Failures caused lack of maintenance.
    • Failures caused rust or water damage.
    • Replacement of cosmetic parts if refused by the manufacturer.
    • Damaged clothing or lost food.
    • Meal costs while your appliance is faulty.
    • Other expense such as laundrette costs.

After your appliance manufacturers warranty expires, you will benefit from,

  • Repairs if your appliance fails.
  • Parts & labour costs included.
  • A replacement appliance if we cannot repair yours.
  • A free appliance service for laundry, refrigeration or cooking appliances.
  • Up to £250 reinstallation costs if we replace your appliance.
  • And, if we can't repair your appliance within 3 working days you are covered for up to £125 for…
    • Lost wages due to time taken of work.
    • Damaged clothing or lost food.
    • Meal costs while your appliance is faulty.
    • Other expenses such as laundrette costs.
    • The cost of replacement cosmetic parts.

Some free of charge benefits are provided to you automatically when you purchase Protect & Care. For full details of Protect & Care, what’s included, excluded, how to claim, refunds, complaints process and how to opt out of the free benefits please read the Terms and Conditions.

View Terms and Conditions

Add to Wish List Add to Compare
  • Warranty 2 Years
  • ColourBlack
  • Energy RatingB
  • Installation TypeBuilt-In
  • Width496
  • Air Flow Boost645
  • Appliance Current (A)3
  • Appliance Frequency (Hz)60; 50
  • Appliance Voltage (V)220-240
  • Boost Position Air Extraction645
  • Boost Position Output Recirculating628
  • Construction TypeBuilt-In
  • Cord Length150
  • Fluid Dynamic Efficiency22.7
  • Fluid Dynamic Efficiency ClassC
  • Grease Filter MaterialWashable aluminium
  • Grease Filtering Efficiency65.1
  • Grease Filtering Efficiency ClassD
  • Lighting Efficiency182.0
  • Lighting Efficiency ClassA
  • Max Air Flow570
  • Max Output Air Extraction570
  • Max Output Recirculating Air560
  • Min Air Flow295
  • Min Niche Width496
  • Motor LocationIntegrated motor in hood body
  • Niche Depth264
  • No Return Air Flow FlapYes
  • Noise Level66
  • Noise Level Boost Position68
  • Number of Lights2
  • Number of Motors1
  • Operating ModeConvertible
  • Plug TypeGB plug
  • Sound Power Max Speed66
  • Sound Power Min Speed50
  • Type of Control / AppliancesElectronic
  • Type of Control SettingsButton
  • Type of LightLED
  • TypologyBuilt-in/Built-under
  • Warranty Duration2
  • Manufacturer Guarantee2 years
  • EAN4242005475605
b rating
main product photo
Benefits
Design:
  • Canopy hood
  • Installation: Cabinet
  • Flush-fitted installation for a seamless integration in wall cupboards.
  • Suitable for ducted or recirculating operation
  • For recirculated extraction various recirculation kits are available as optional accessories.
Core Features:
  • 2 x 1W LED
  • Colour Temperature: 4000 K
  • Light Intensity: 400 lux
  • Capacitor motor
  • 1 metal grease filter(s).
Comfort Features:

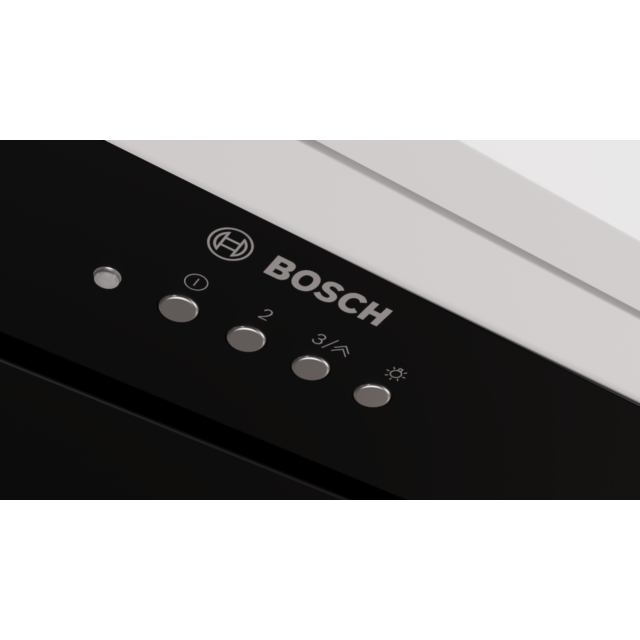

  • Soft touch button control with Electronic display
  • 3 power levels & intensive setting
  • Automatic reset from intensive to normal setting after 6 min
Cleaning Comfort:
  • Removable metal grease filters dishwasher-safe
  • Easy to clean smooth surfaces and materials.
Performance Exhaust:
  • According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in exhaust mode: Speed 1: extraction rate 295 m3/h; noise level 50 dB (A) re1pW Speed 2: extraction rate 445 m3/h; noise level 59 dB (A) re1pW Speed 3: extraction rate 570 m3/h; noise level 66 dB (A) re1pW Intensive 1: extraction rate 645 m3/h; noise level 68 dB (A) re1pW

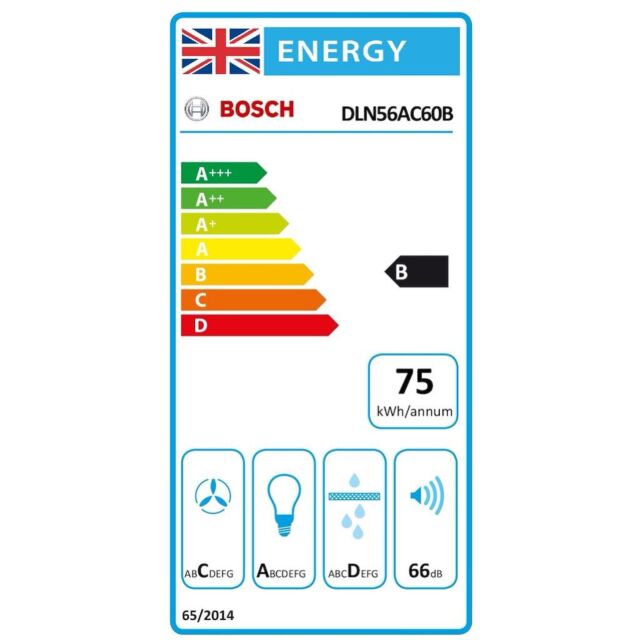

  • Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
  • Average Energy Consumption: 75.2 kWh/year*
  • Blower Efficiency Class: C*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: D*
Performance Recirculation:
  • According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in  recirculation mode with standard recirculation kit (available as optional accessory): Speed 1: extraction rate 230 m3/h; noise level 62 dB (A) re1pW Speed 2: extraction rate 330 m3/h; noise level 69 dB (A) re1pW) Speed 3: extraction rate 400 m3/h ; noise level 72 dB (A) re1pW) Intensive Speed 1: extraction rate410 m3/h; noise level 74 dB (A) re1pW)
  • According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in recirculation mode with Clean Air plus recirculation kit, for chimless installation (available as optional accessory): Speed 1: extraction rate 280 m3/h ; noise level 56 dB (A) re1pW Speed 2: extraction rate 430 m3/h ; noise level 69 dB (A) re1pW) Speed 3: extraction rate 560 m3/h ; noise level 69 dB A) re1pW) Intensive Speed 1: extraction rate 628 m3/h ; noise level 72 dB (A) re1pW)
Technical Information and Sustainability:
  • Consumption data:
  • Power rating: 252 W
  • Voltage: Nominal voltage: 220 - 240 V
  • Sustainability:
  • Environmentally friendly packaging
  • Available odour filter as regenerative Long Life filter with 10 years lifetime
Planning and Installation Information:
  • Dimensions (HxWxD): 345 x 520 x 282 mm
  • Dimensions recirculating (HxWxD): 345-345 x 520 x 282 mm
  • Built-in dimensions (HxWxD): 345 x 496 x 264 mm
  • Please reference the built-in dimensions provided in the installation drawings
  • Electrical cable length 1.5 m
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
  • Back-pressure flap: Yes
More Information
Manufacturer Bosch
GTIN 4242005475605
Colour Black
Model Number DLN56AC60B
Type of Control / Appliances Electronic
Type of Control Settings Button
Construction Type Built-In
Appliance Current (A) 3
Appliance Voltage (V) 220-240
Appliance Frequency (Hz) 60; 50
Plug Type GB plug
Cord Length 150
Min Niche Width 496
Energy Rating B
Niche Depth 264
Noise Level 66
Warranty Duration 2
Number of Lights 2
Type of Light LED
Boost Position Air Extraction 645
Max Output Air Extraction 570
Noise Level Boost Position 68
Sound Power Min Speed 50
Sound Power Max Speed 66
Air Flow Boost 645
Min Air Flow 295
Max Air Flow 570
Grease Filtering Efficiency Class D
Grease Filtering Efficiency 65.1
Max Output Recirculating Air 560
Boost Position Output Recirculating 628
Grease Filter Material Washable aluminium
No Return Air Flow Flap Yes
Number of Motors 1
Lighting Efficiency Class A
Lighting Efficiency 182.0
Motor Location Integrated motor in hood body
Fluid Dynamic Efficiency 22.7
Operating Mode Convertible
Typology Built-in/Built-under
Fluid Dynamic Efficiency Class C
Installation Type Built-In
Width 496
