Benefits
Key performance features:
  • Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
  • Extraction rate according to EN 61591 max. 625 m³/h
  • Noise max. Normal Level: Noise, max. speed in normal us: 70 dB dB*
Features

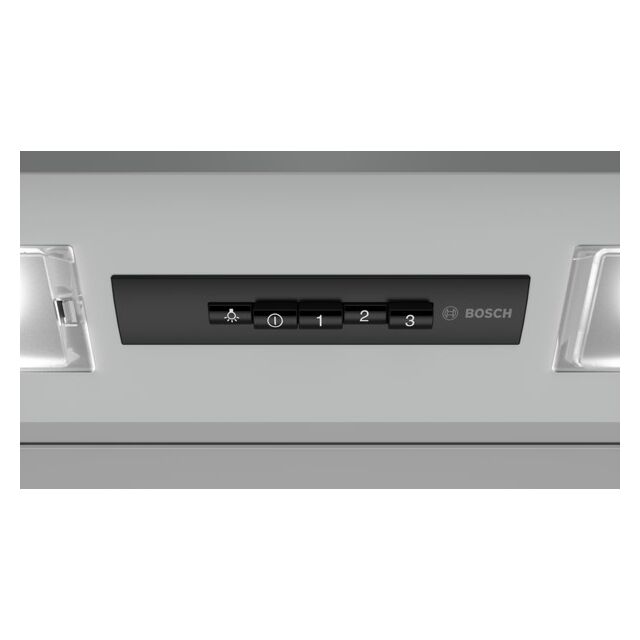

  • Push button control for extractor speeds and light
  • 3 power levels

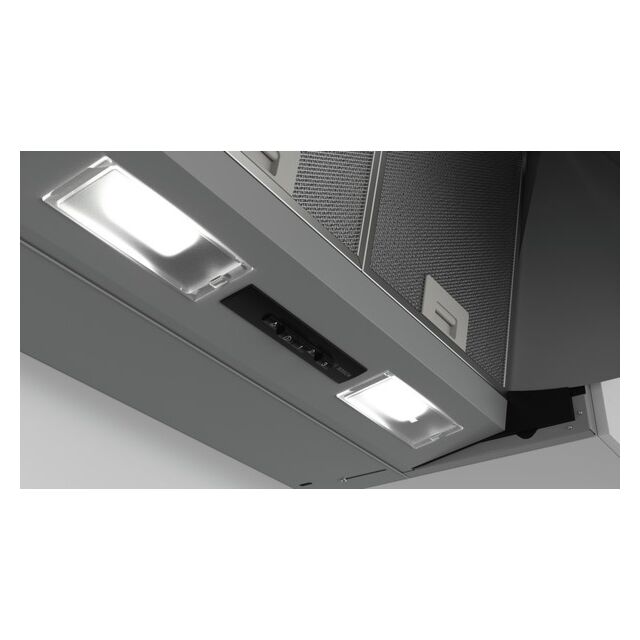

  • 2 x 3W LED
  • Single motor

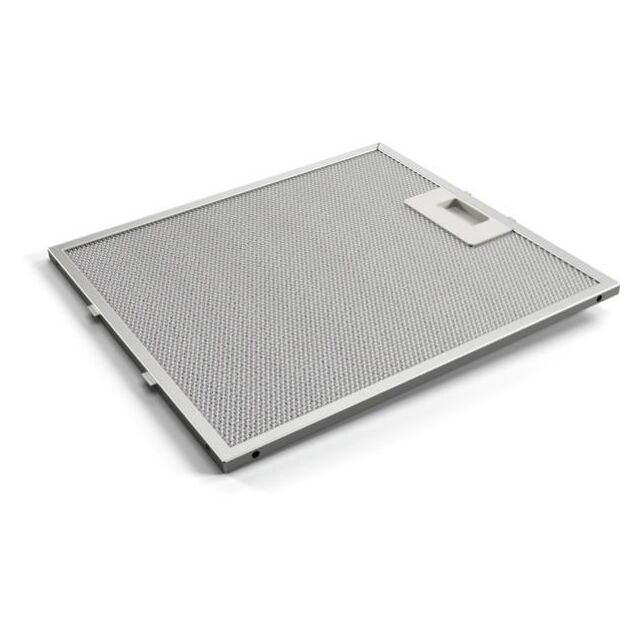

  • 2 removable metal grease filter cassettes
Design

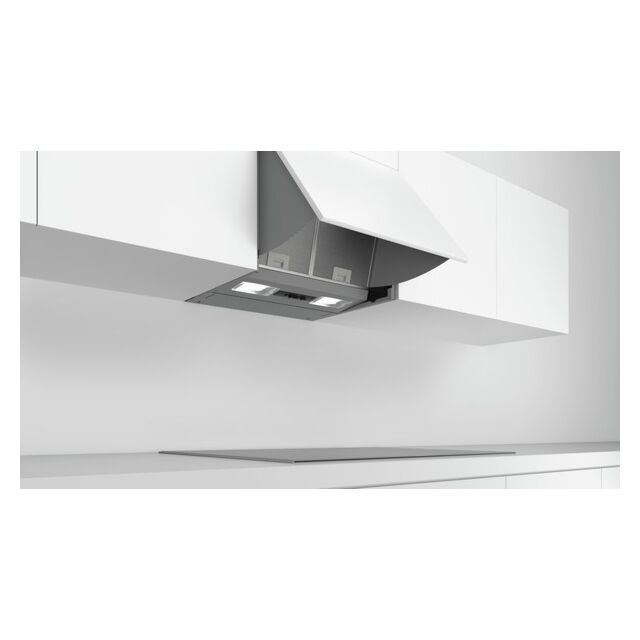

  • Integrated hood
  • Installation: Between Cupboards
  • Push button control
  • Mechanical
Performance/technical information
  • Suitable for ducted or recirculating operation
  • For recirculated extraction charcoal filter (accessory) needed
  • Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 70 dB(A) re 1 pW
  • Power rating: 256 W
  • Light Intensity: 188 lux
  • Colour Temperature: 2700 K
  • Electrical cable length 1.5 m
  • Blower Efficiency Class: B*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: C*
  • Average Energy Consumption: 68.4 kWh/year*
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
  • Dimensions exhaust air (HxWxD): 402-402 x 599 x 271 mm
  • Dimensions recirculating (HxWxD): 402-402 x 599 x 271 mm
Optional accessories
  • Recirculating kit DWZ0IM0A0
More Information
Manufacturer Bosch
Type of Control / Appliances Mechanical
Type of Control Settings Button
Construction Type Built-In
GTIN 4242005041121
Colour Metallic silver
Model Number DEM66AC00B
Appliance Current (A) 10
Appliance Voltage (V) 220-240
Appliance Frequency (Hz) 50; 60
Approval Certificates CE
Plug Type GB plug
Cord Length 150
Grease Filter Type Kassette
Energy Rating B
Noise Level 70
Warranty Duration 2
Number of Lights 2
Max Output Air Extraction 625
Sound Power Min Speed 49
Sound Power Max Speed 70
Air Flow Boost 0.0
Min Air Flow 256
Max Air Flow 625
Grease Filtering Efficiency Class C
Grease Filtering Efficiency 76.0
Max Output Recirculating Air 416
Grease Filter Material Washable aluminium
No Return Air Flow Flap Yes
Number of Motors 1
Lighting Efficiency Class A
Lighting Efficiency 29.0
Motor Location Integrated motor in hood body
Fluid Dynamic Efficiency 25.4
Operating Mode Convertible
Typology Built-in/Built-under
Fluid Dynamic Efficiency Class B
Installation Type Built-In

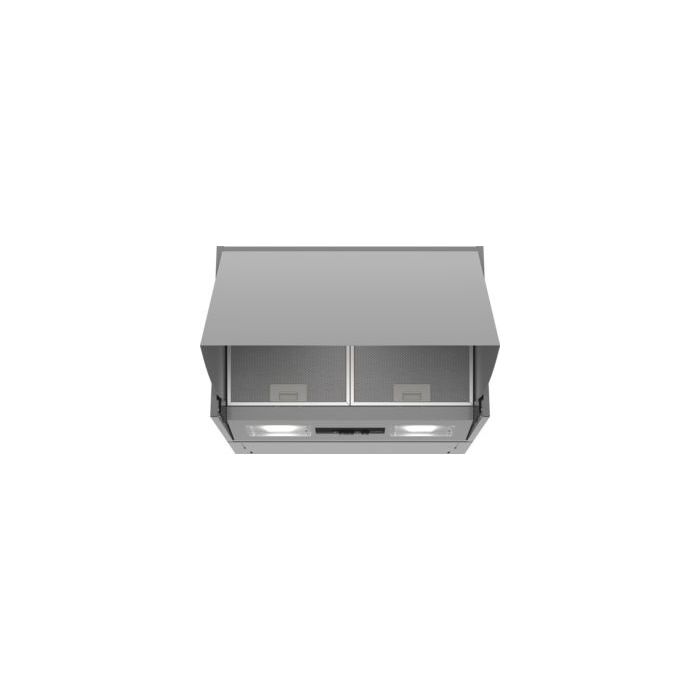

Bosch DEM66AC00B, Integrated cooker hood
