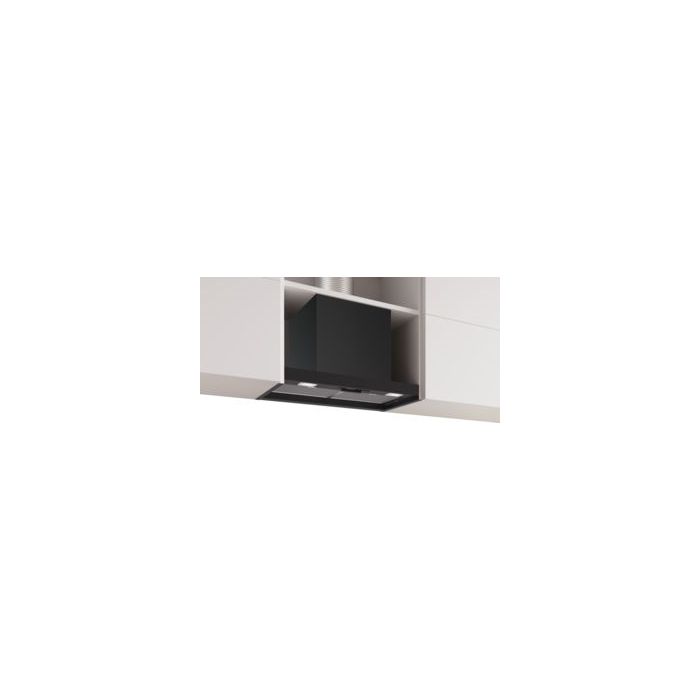

Bosch DBB63BC60B, Integrated Design Hood
£339.99
Available To Pre-Order Online
or Please contact sales on 0330 900 1966 for an available date
or Please contact sales on 0330 900 1966 for an available date
- Warranty 2 Years
- ColourBlack
- Energy RatingD
- Installation TypeBuilt-In
- Width560
- Manufacturer Guarantee2 years
- EAN4242005530212
Design:

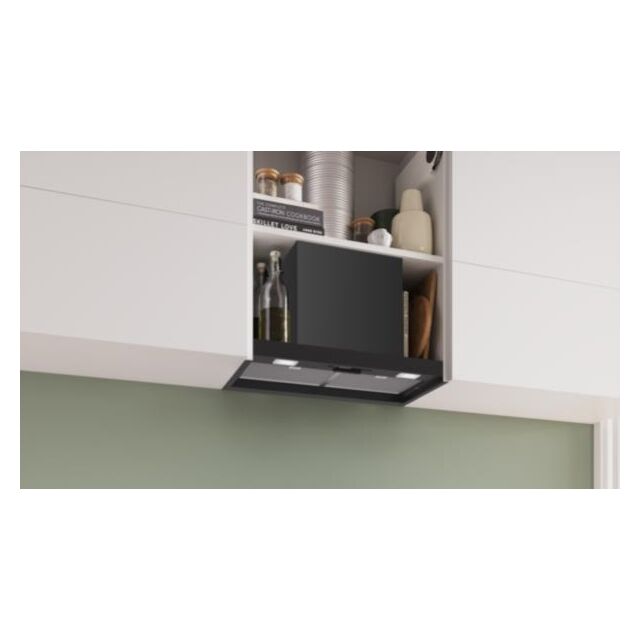

- Installation in a wall cupboard
- Flush-fitted installation for a seamless integration in wall cupboards.
- Enlarged storage space: max. 10 kg capacity on each hood side
- Suitable for ducted or recirculating operation
- Shaded-pole motor
- 2 x LED 1.5W
- Colour Temperature: 3500 K
- Light Intensity: 316 lux
- 2 metal grease filter(s).
- Cupboard protection: additional side and rear protection against vapour
- Push button control for extractor speeds and light
- 3 power levels
- Easy to clean smooth surfaces and materials.
- Removable metal grease filters dishwasher-safe
- Coated surfaces for less fingerprint sensitivity
- According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in exhaust mode:
- Speed 1: extraction rate 174 m3/h; noise level 49 dB(A) re1pW
- Speed 2: extraction rate 246 m3/h; noise level 57 dB(A) re1pW
- Speed 3: extraction rate 384 m3/h; noise level 65 dB (A) re1pW

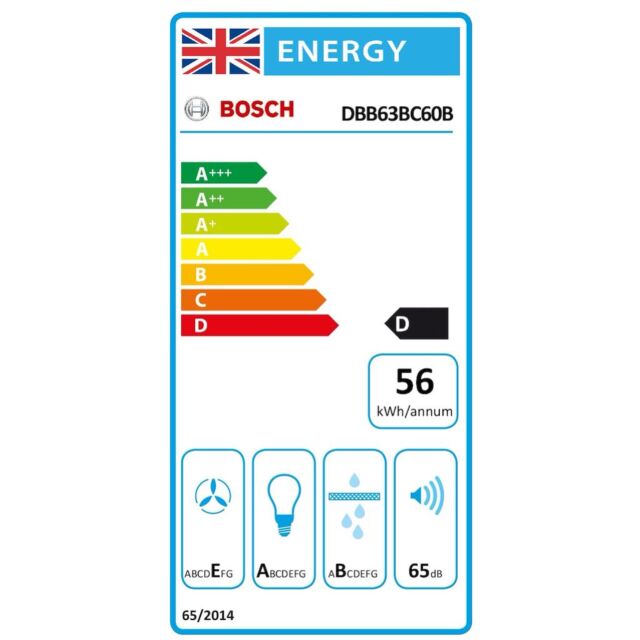

- Energy Efficiency Class: D (at a range of energy efficiency classes from A+++ to D)
- Average Energy Consumption: 56.1 kWh/year*
- Blower Efficiency Class: E*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: B*
- For recirculation operation Long-life Clean Air recirculation kit (accessory) needed
- The Long-life Clean Air odour filter absorbs intense odours, such as fish, as well as pollen. The lifetime can be extended up to 4 times by refreshing the filter in the oven
- According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in recirculation mode with Long-life Clean Air recirculation kit (available as optional accessory):
- Speed 1: extraction rate 140 m3/h; noise level 49 dB(A) re1pW
- Speed 2: extraction rate 212 m3/h; noise level 59 dB(A) re1pW
- Speed 3: extraction rate 291 m3/h; noise level 66 dB (A) re1pW
- Consumption data:
- Power rating: 100 W
- Voltage: Nominal voltage: 220 - 240 V
- Sustainability:
- Made in Germany: produced at a CO2 neutral production site
- Available Long-life Clean Air odour filter with extended lifetime up to 4 times
- Installation: Cupboard 60 cm
- Installation system: IDH comfort installation
- Appliance dimensions (HxWxD): 340 x 598 x 298 mm
- Built-in dimensions (HxWxD): min. 340 mm x 560 mm x min. 300 mm
- Enclosed spacers for installation in wall cupboards with maximum depth of up to 360mm.
- For installation in higher wall cupboards chimney extensions are available as optional accessories.
- Diameter pipe Ø 150 mm
- Electrical cable length 1.3 m
| Manufacturer | Bosch |
|---|---|
| GTIN | 4242005530212 |
| Colour | Black |
| Model Number | DBB63BC60B |
| Type of Control / Appliances | Mechanical |
| Type of Control Settings | Button |
| Appliance Voltage (V) | 220-240 |
| Appliance Frequency (Hz) | 50 |
| Plug Type | GB plug |
| Cord Length | 130 |
| Min Niche Width | 560 |
| Energy Rating | D |
| Niche Depth | 300 |
| Noise Level | 65 |
| Number of Lights | 2 |
| Type of Light | LED |
| Max Output Air Extraction | 384 |
| Sound Power Min Speed | 49 |
| Sound Power Max Speed | 65 |
| Min Air Flow | 174 |
| Max Air Flow | 384 |
| Grease Filtering Efficiency Class | B |
| Grease Filtering Efficiency | 89.3 |
| Max Output Recirculating Air | 291 |
| Grease Filter Material | Washable stainless steel |
| Number of Motors | 1 |
| Diameter of Air Outlet | 150 |
| Lighting Efficiency Class | A |
| Lighting Efficiency | 51.0 |
| Motor Location | Integrated motor in hood body |
| Fluid Dynamic Efficiency | 9.4 |
| Operating Mode | Convertible |
| Typology | Built-in/Built-under |
| Fluid Dynamic Efficiency Class | E |
| Installation Type | Built-In |
| Width | 560 |
