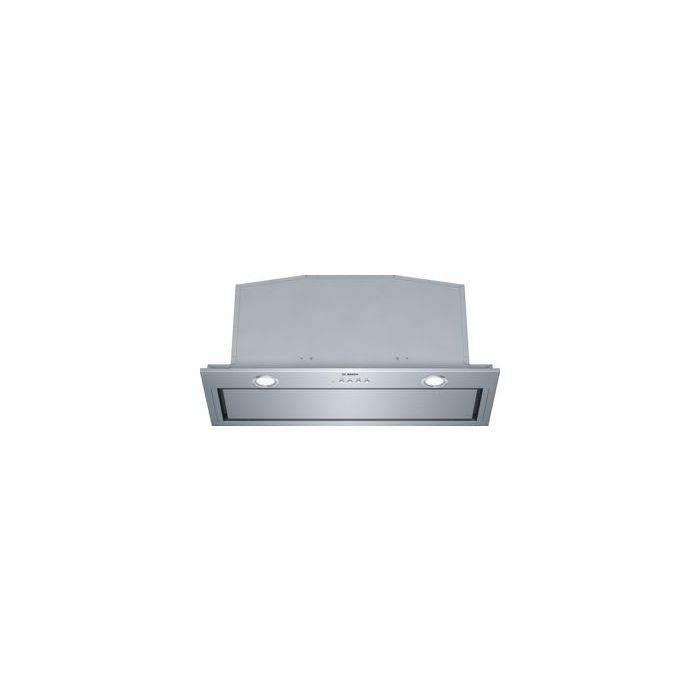

Bosch DHL785CGB, Canopy cooker hood
£589.99
Available To Pre-Order Online
or Please contact sales on 0330 900 1966 for an available date
or Please contact sales on 0330 900 1966 for an available date
- Warranty 2 Years
- ColourBrushed Steel
- Energy RatingC
- Installation TypeBuilt-In
- Width676
- Manufacturer Guarantee2 years
- EAN4242002831206
Key Information
- Energy Efficiency Class: C (at a range of energy efficiency classes from A+++ to D)
- Extraction rate exhaust air according to EN 61591:
- max. normal use630 m³/h, intensive 730 m³/h
- Noise max. Normal Level: Noise, max. speed in normal us: 66 dB dB*
- Soft touch button control with Electronic display
- 3 power levels & intensive setting
- Automatic intensive revert (6mins)
- 2 x 1W LED
- 2 removable metal grease filter cassettes
- Filter cover stainless steel, Removable metal grease filters
- Installation: Cabinet
- Brushed steel
- 70 cm wide
- Rim ventilation
- Suitable for ducted or recirculating operation
- For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use630m³/h
- Intensive730 m³/h
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use:66dB(A) re 1 pW
- Intensive:69 dB(A) re 1 pW
- With the Clean Air Plus recirculation kit (available as optional accessory) your appliances reaches:
- Extraction rate in recirculation mode: Max. normal use:571m³/h
- Intensive:664m³/h
- Noise level in recirculation mode: Max. normal use:72dB(A) re 1 pW
- Intensive:75 dB(A) re 1 pW
- Power rating: 277 W
- Light Intensity: 244 lux
- Colour Temperature: 4000 K
- Blower Efficiency Class: C*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: D*
- Average Energy Consumption: 104.2 kWh/year*
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 418-418 x 700 x 300 mm
- Dimensions recirculating (HxWxD): 418-418 x 700 x 300 mm
| Manufacturer | Bosch |
|---|---|
| GTIN | 4242002831206 |
| Colour | Brushed steel |
| Model Number | DHL785CGB |
| Type of Control / Appliances | Electronic |
| Type of Control Settings | LED;Low-lift pushbuttons |
| Construction Type | Built-In |
| BSH 5 Year Warranty | No |
| Appliance Current (A) | 3 |
| Appliance Voltage (V) | 220-240 |
| Appliance Frequency (Hz) | 50 |
| Approval Certificates | CE, VDE |
| Plug Type | GB plug |
| Cord Length | 150 |
| Grease Filter Type | Kassette |
| Min Niche Width | 676 |
| Energy Rating | C |
| Niche Depth | 264 |
| Noise Level | 66 |
| Number of Lights | 2 |
| Type of Light | LED |
| Boost Position Air Extraction | 730 |
| Max Output Air Extraction | 630 |
| Noise Level Boost Position | 69 |
| Sound Power Boost | 69 |
| Sound Power Min Speed | 53 |
| Sound Power Max Speed | 66 |
| Air Flow Boost | 730.0 |
| Min Air Flow | 345.0 |
| Max Air Flow | 630 |
| Grease Filtering Efficiency Class | D |
| Grease Filtering Efficiency | 75.0 |
| Max Output Recirculating Air | 571 |
| Boost Position Output Recirculating | 664 |
| Grease Filter Material | Washable aluminium |
| No Return Air Flow Flap | Yes |
| Number of Motors | 1 |
| Lighting Efficiency Class | A |
| Lighting Efficiency | 111.0 |
| Motor Location | Integrated motor in hood body |
| Fluid Dynamic Efficiency | 18.9 |
| Operating Mode | Convertible |
| Typology | Built-in/Built-under |
| Fluid Dynamic Efficiency Class | C |
| Installation Type | Built-In |
| Width | 676 |
